安全的非触摸式感应调光开关

传统的触摸调光、触摸开关已经很成熟，主要是台灯和楼道灯用。原理大致是手指接触金属电极时，人体感应附近的50Hz交流电作为杂波触发控制电路，或者人体的对地电阻改变内部的RC振荡频率和相位。一般触摸时要求手指接触裸露的金属片，这一类电路内部大多使用不隔离的电源供电，直接触摸上去总给人一种不够安全的感觉。有的触摸片上有一层薄薄的绝缘漆，不过也好不了多少。还有一个是老问题：带手套时触摸不起作用。
如果一旦出了问题，麻烦就大了，容易电人滴
今日浏览，突然发现这个电路图，发现不错，就转了过来，

      现在有一种新一代的电容式触摸感应技术，通过检测手指接近时，金属电极与手指之间微小的电容变化，来检测触摸动作，可以隔着绝缘面板起作用，能穿透几毫米厚的塑料、玻璃等绝缘材料。使用这种技术的电容式触摸按键，已经在电磁炉、微波炉和手机出现。电极与手指之间隔几毫米的绝缘物的话，等效电容值应该是很小的，技术实现原理与传统的触摸按键大不相同。 用这种电容式触摸感应技术，可以做出完全绝缘的触摸调光灯、触摸开关，感应电极安装在绝缘外壳或面板的背面，手指只在面板上触摸，应该是绝对安全了吧!搞了一个这种电容式触摸感应IC，参考其他调光灯的电路，实现了一个这种安全调光等。电路图如下：

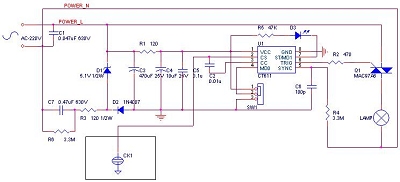

     这是基本的电容降压电路，IC工作在4.3V，实测IC静态工作电流0.6mA。可控硅用2、3象限负触发。IC的第5脚SYNC引入50Hz交流电的同步信号来识别过零点。感应电极连到IC第2脚上，在2、3脚之间接一个辅助的参考电容完成电容检测，触摸时IC的第7脚输出低电平，LED亮。
     支持无级调光和分段调光两种模式，用一个跳线选择，调的方法和现在的一些调光IC也基本相同：无级调光，短时间的触摸作为开、关，长时间就进入调光状态，从最暗调到最亮，到顶后回头再调到最暗；分段调光是灭、弱、中等、最亮四种状态切换。
     感应电极的制作，是用做垫片的铜皮，剪出一个18mmX18mm的小块，焊上线后贴到塑料面板后面。也可以使用金属片，只要能紧贴面板，不留空隙即可。手触摸的是没有贴铜皮的那一面。用不同材料测试，这样的电极可以穿透5mm厚的有机玻璃、9mm的普通玻璃起作用，普通台灯的外壳塑料厚度2~4mm，和2mm的有机玻璃的表现差不多，很灵敏。
     这个IC应该也可以用来做装在墙上的楼道灯触摸开关，或者做成隐藏式开关，用在报警器、玩具和小电器之类，实现无按键式控制。
