走字电子灯箱制作技术资料【1】ok

你好，本贴收费，不是钱，是论坛金币，请大家可以踊跃发言，让论坛活跃起来

走字灯箱用的配件包括
{:1_160:} 控制卡
作用是：输出信号，使驱动卡能按照设定的字，图画等显示，分为脱机卡和同步卡。我们使用的都是脱机卡，有些地方又叫异步卡，控制卡通过串口线和电脑连接。接受配套软件控制。
{:1_160:} 驱动卡，
是驱动led显示的控制单元，其作用 和开关一样，通过多个端口的开通和关闭来控制led的亮和灭。
本卡分为去年设计的老卡和今年设计的行扫卡和列扫卡
{:1_160:} 电源
每个16*16的点阵大概要消耗2安的电流
电源的规格有，5伏5安 5伏10安 5伏20安 5伏40安
{:1_160:} 排线，排线端口
我们用到的是16PIN的排线，8PIN的排线
{:1_160:} 灯
一半我们用椭圆的显示屏上专用的灯，同时还有上扁下圆的单株防水灯，另外也有用普通的圆灯做的，颜色我看好红和白，比较好看

铝塑板我们尽量用好一点的，在90元左右的双面黑色或棕色铝塑板，厚度是3毫米左右的最好，大眼可以参照走字灯箱打孔那个视频录像
下面正式开始，
首先准备一块铝塑板,我弄的间距在1.4左右，16个灯就是22左右，效果也可以，所以就定了下来，铝塑板裁成40*120一块，实际的显示面积是【22*22】4个字就是22*96公分，每边的剩余是为了安排电源，走线的方便，不是专门的加大，当然，你可以在这些地方安排一些跑马灯什么的，更加好看

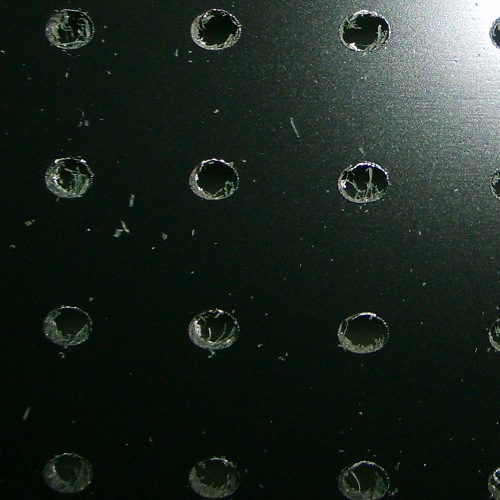

当然这是雕刻机大的椭圆眼，因为是试验，没有做模板，雕刻机打的就是慢啊，老半天，这4个字才打完，

椭圆的有个好处，就是和灯的配合紧密，但是太麻烦，我觉的不如模板来的方便

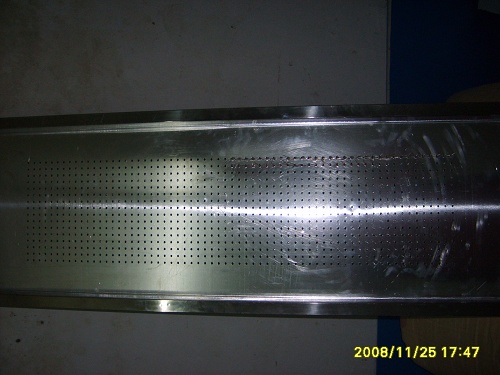

边框我是用的不锈钢，焊的方框

用的是3*5厘米的不锈钢，焊接的方框，本来打算做双面的，后来一想我也没有地方挂，就罢休了，

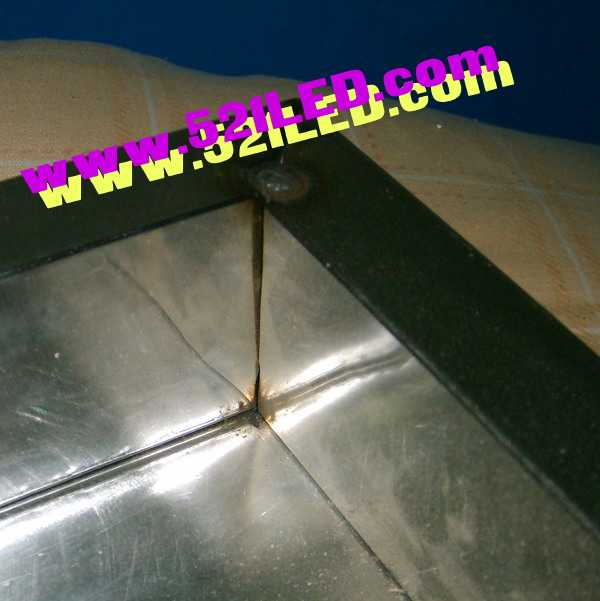

我们仔细看下边角的处理


我是把铝塑板用不锈刚L型边条，镶嵌在不锈钢边框上因为都是不锈刚，所以并不是很难看，，样品，就凑合了，

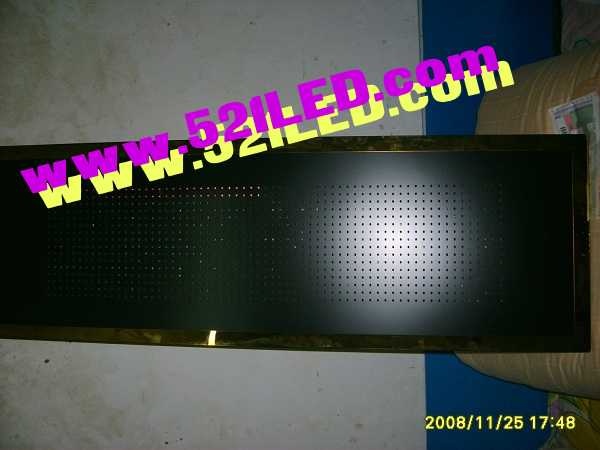

这是外框弄好后的样字，

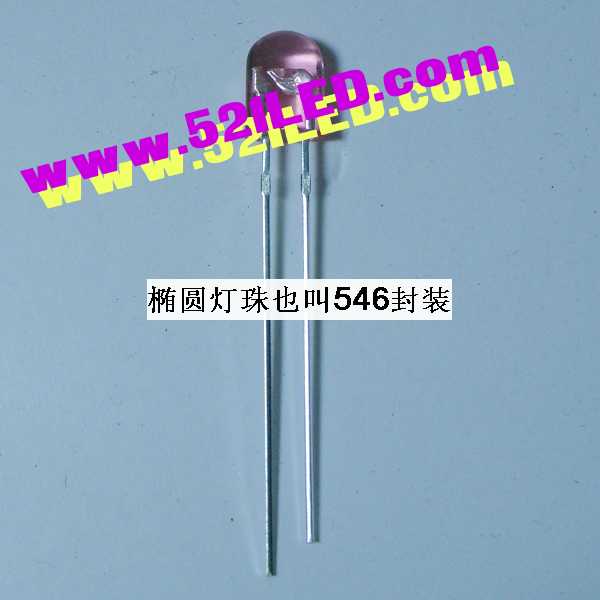

这就是我们用的灯珠，椭圆灯珠，这是显示屏上用的，特点就是角度大 ，显示屏上用的这种灯，当然，你也可以使用你手头的那种圆灯泡，也可以的，就是可视的角度不是太好。

【还在写，稍等】
